Heathkit IG-82 Sine-Square Wave Signal Generator

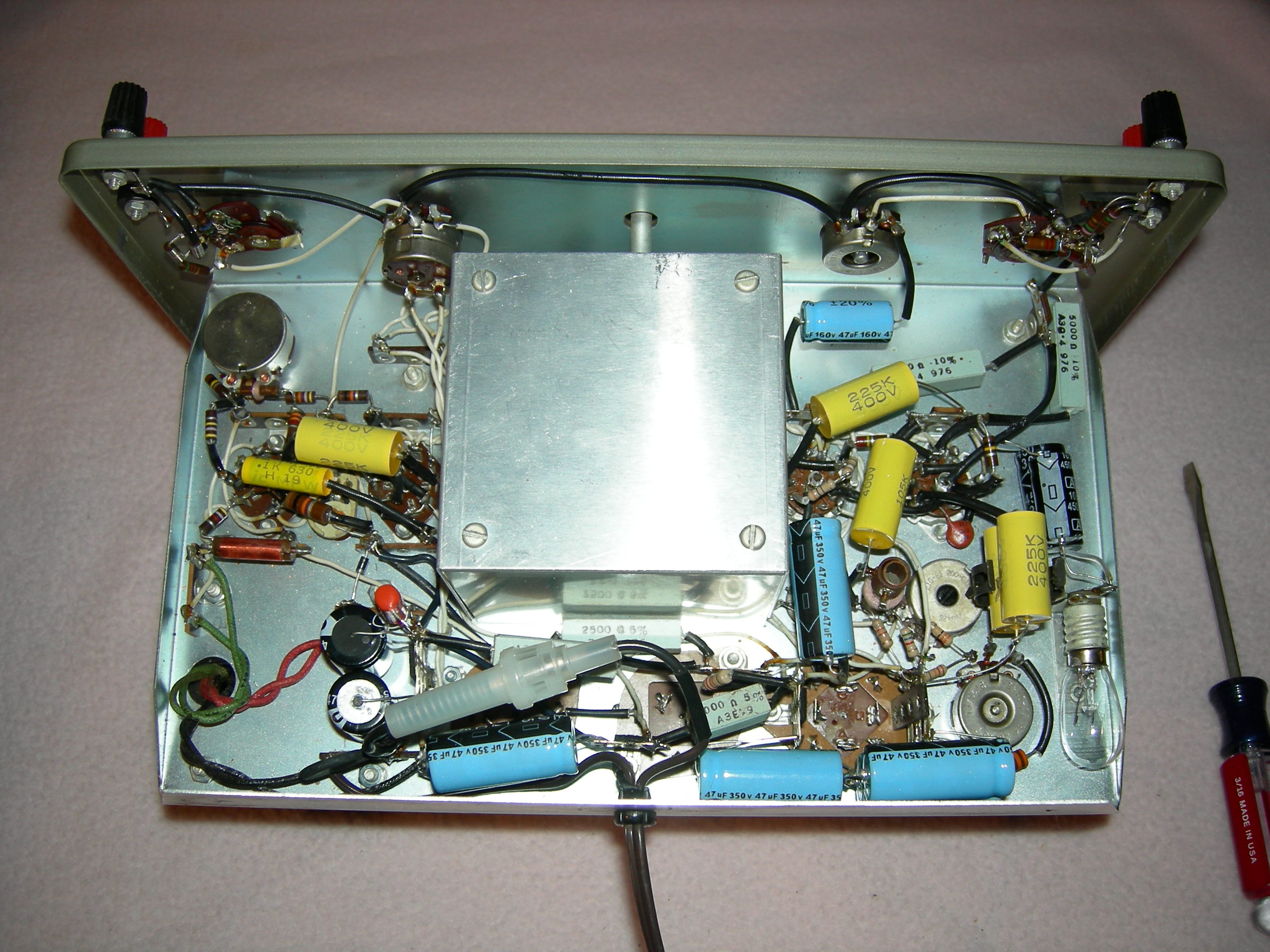

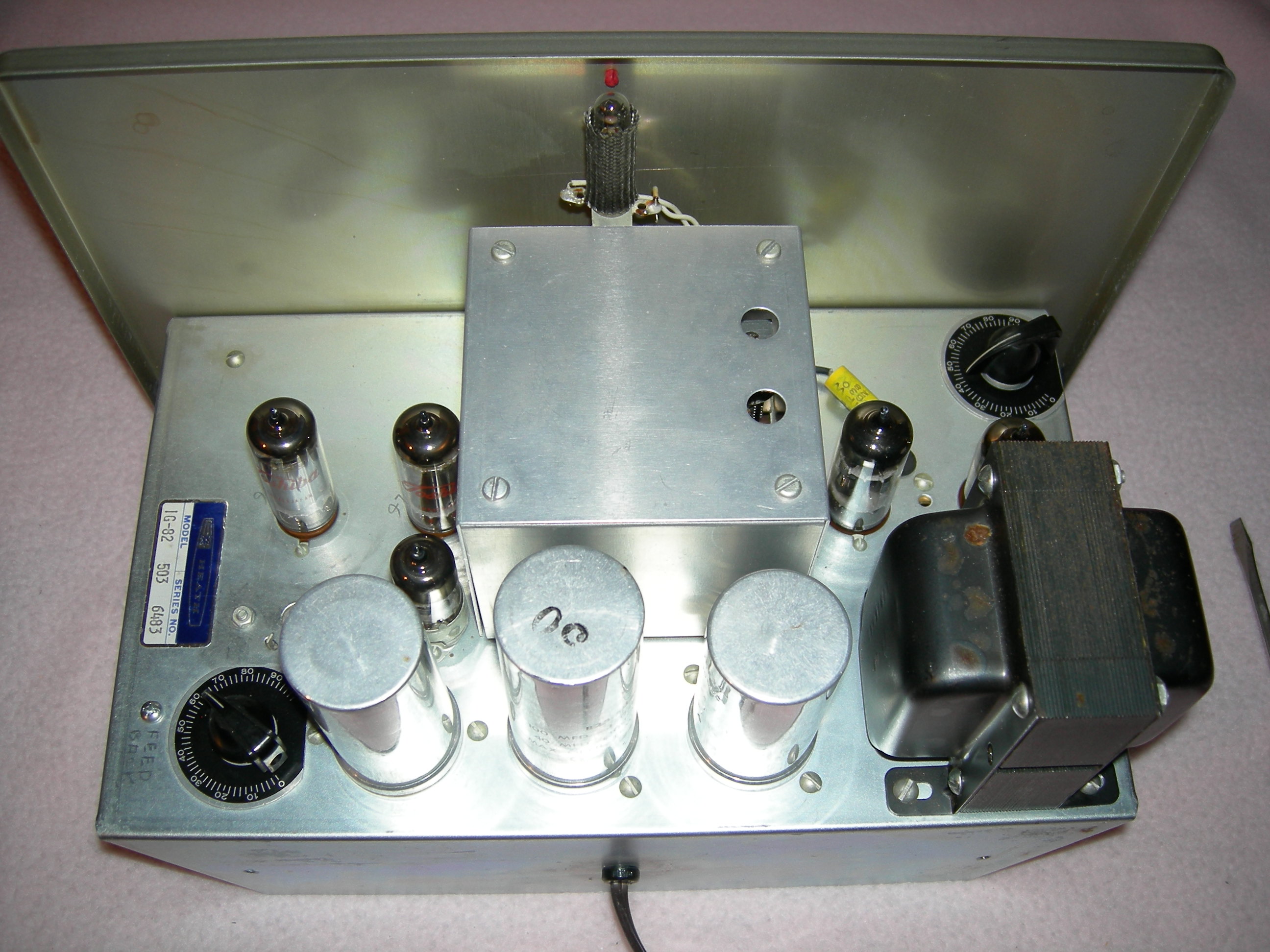

This is a restored Heathkit IG-82 Sine-Square Wave Signal Generator. The signal generator operates through audio frequency range and beyond. This is a very handy signal generator for aligning the 50 KHz IF stage of the Hallicrafters SX-100. RF signal generators will not go low enough to generate a 50 KHz signal, but using this signal generator the alignment can be performed.

Tags:

3 thoughts on “Heathkit IG-82 Sine-Square Wave Signal Generator”

  1. Dave Smith says:

    Was wondering if you might have a pdf manual for this unit that could make a donation or something?

  2. DLandon says:

    I don’t have a pdf copy of the manual. Try here: http://www.vintagemanuals.com/manuals.php?manufacturer=Heathkit&page=1

  3. Paul says:

    Great job! I’m just about to tackle one myself. For anyone else interested, the AG-10 is virtually identical, and a full scan of the manual is readily available.
